The appliance made for the back of the house
TONI
COMPATTO
VELOCE
Collaborative Robotic Bar System — MSCV Series
Overview & Diagrams
02 / 04

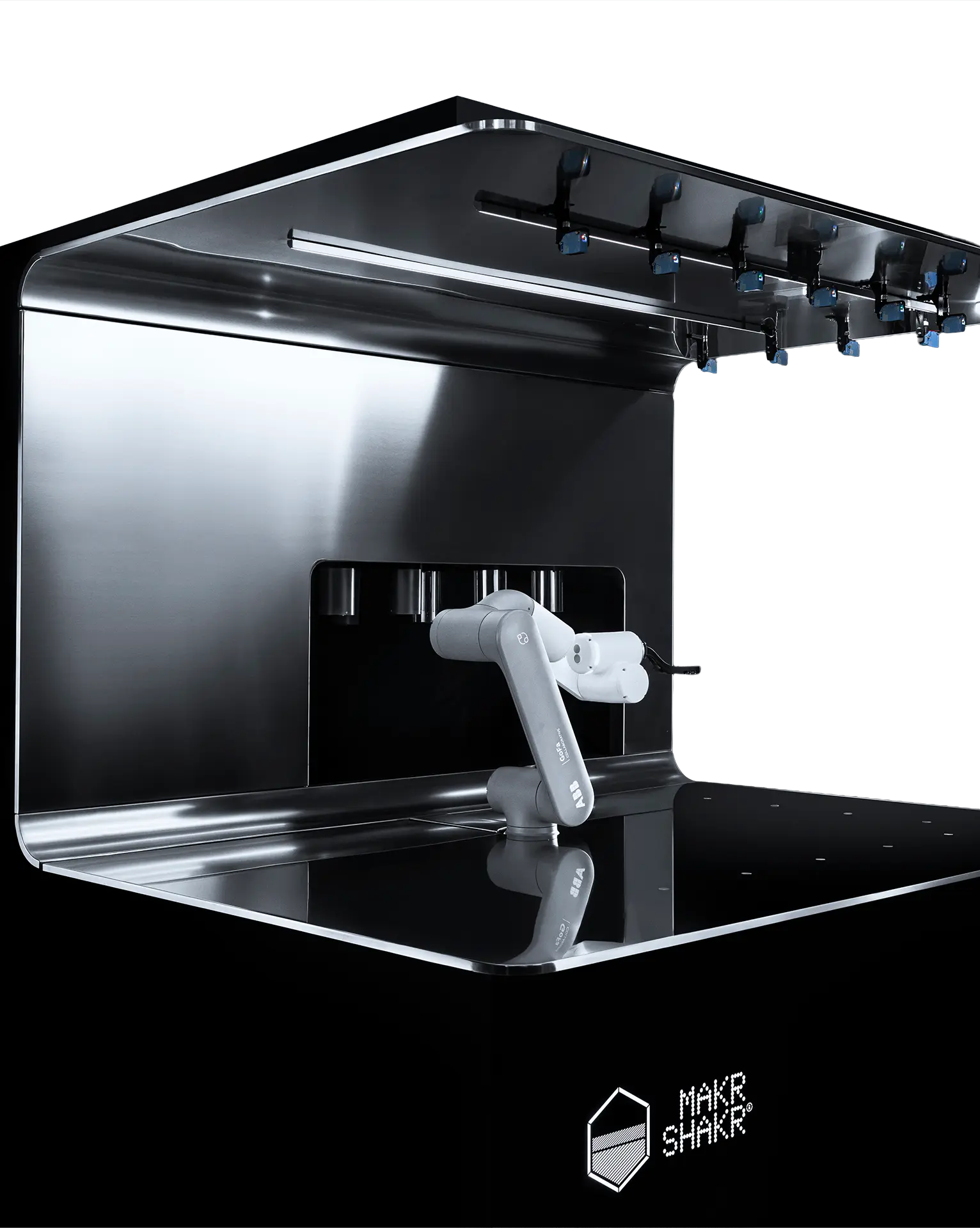

Toni Compatto Veloce is an enterprise-grade robotic bar system designed to integrate seamlessly
into back-of-house environments. Built around an ABB CRB 15000 collaborative robot arm, the
system delivers consistent, high-throughput drink service while coexisting safely with human
staff — no safety cage required.
Design Philosophy
Designed to blend in with kitchen and back-bar appliances. Compact footprint. Food-grade
stainless steel construction. Back-access servicing means zero interruption to front-of-house
operations during restocking and maintenance.

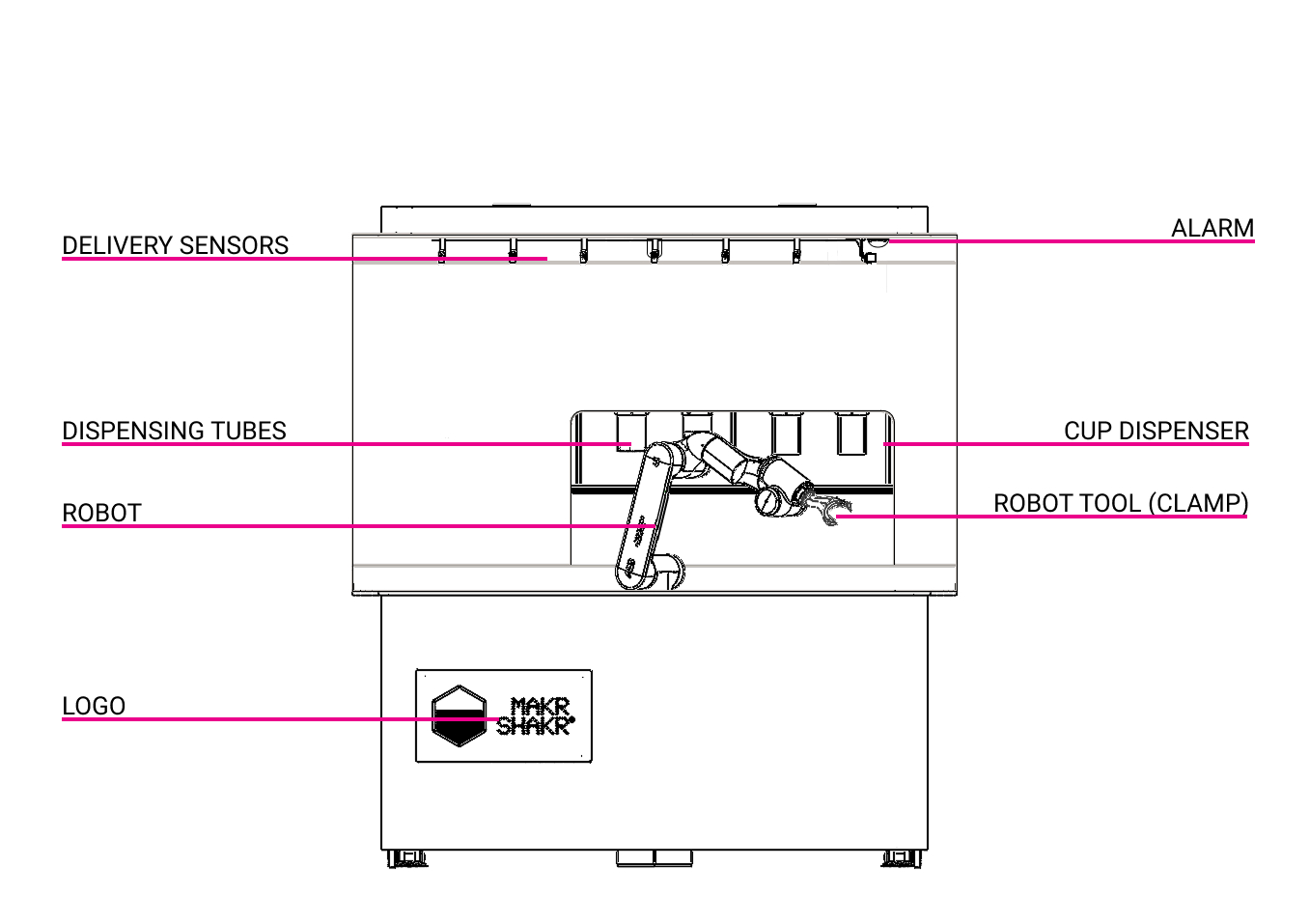

Fig. 1 — Front View

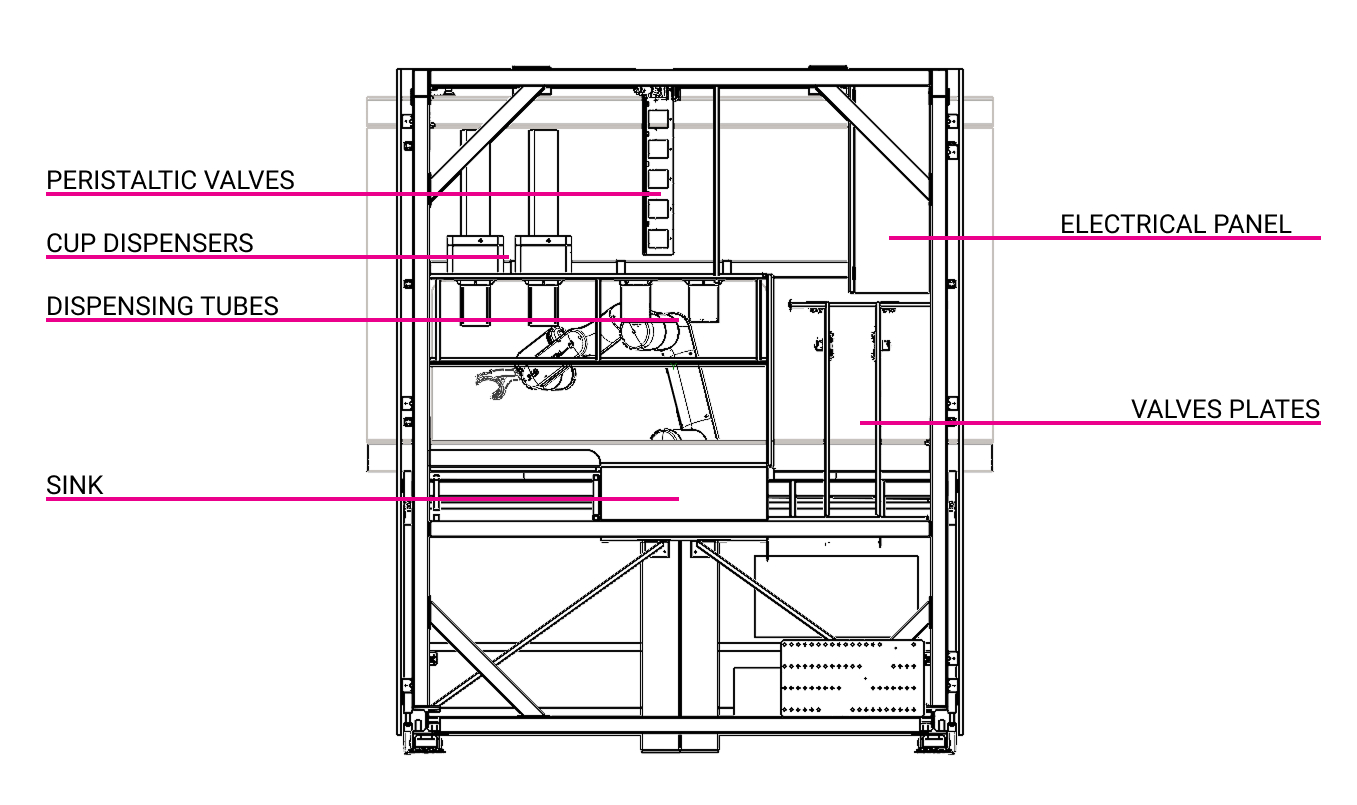

Fig. 2 — Internal Cross-Section
Delivery Sensors
Cup Dispenser
Dispensing Tubes
Robot Tool Clamp
Peristaltic Valves
Electrical Panel
Valves Plates
Integrated Sink
Alarm System

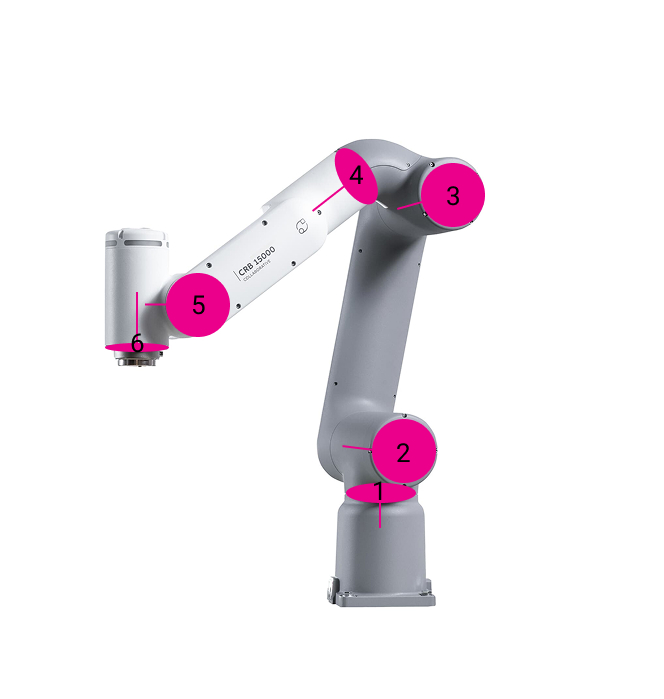

Fig. 3 — ABB CRB 15000 · 6-Axis Cobot
-
6-Axis ABB CRB 15000
Collaborative robot certified for human coexistence — no safety cage required.
-
10 Delivery Spots
Robot hands drinks to servers at designated handoff positions.
-
120+ Drinks / Hour
Sustained throughput under full operational load.
-
Precision Mixing
Repeatable recipe execution with ±1ml dispensing accuracy.
Specifications & Features
03 / 04
Throughput
120+ drinks / hour
Liquor Lines
Up to 48 liquors
Mixer Capacity
12 Bag-in-Box + soda + still water
Cup Refill
Back-loading — no service interruption
Liquor Supply
Remote racks via pressure pumps
Robot
ABB CRB 15000 — 6-axis cobot
Counter Material
Food-grade stainless steel — slide-out
Sink
Integrated — daily use
Electric Connection
Single-phase or three-phase supply. Dedicated circuit with GFCI protection. Compliant with CE / UL standards.
Data Connection
Ethernet RJ-45 or Wi-Fi 6. Integration with Makr Shakr cloud platform and local network POS systems.
Water In / Out
3/4" inlet for still and sparkling water. Standard drain connection for integrated sink waste.
Remote Rack Piping
Flexible tubing connects remote liquor racks to on-board peristaltic valves. Up to 48 individual lines.
Toni Compatto Veloce is an open integration platform. Native support for Light 'n' Wonder BOSS
beverage ordering system. Custom POS and third-party ordering integrations available via REST API.
-
BOSS Compatible
Native integration with Light 'n' Wonder beverage ordering infrastructure.
-
POS Integration
Works with any major POS system. Custom integration delivered via API bridge.
-
REST API Access
Full programmatic access to order queue, recipe management, and status monitoring.
-
Remote Management
Cloud dashboard for real-time monitoring, analytics, and over-the-air updates.
Technical Datasheet · Rev. 1.0 · 2025
